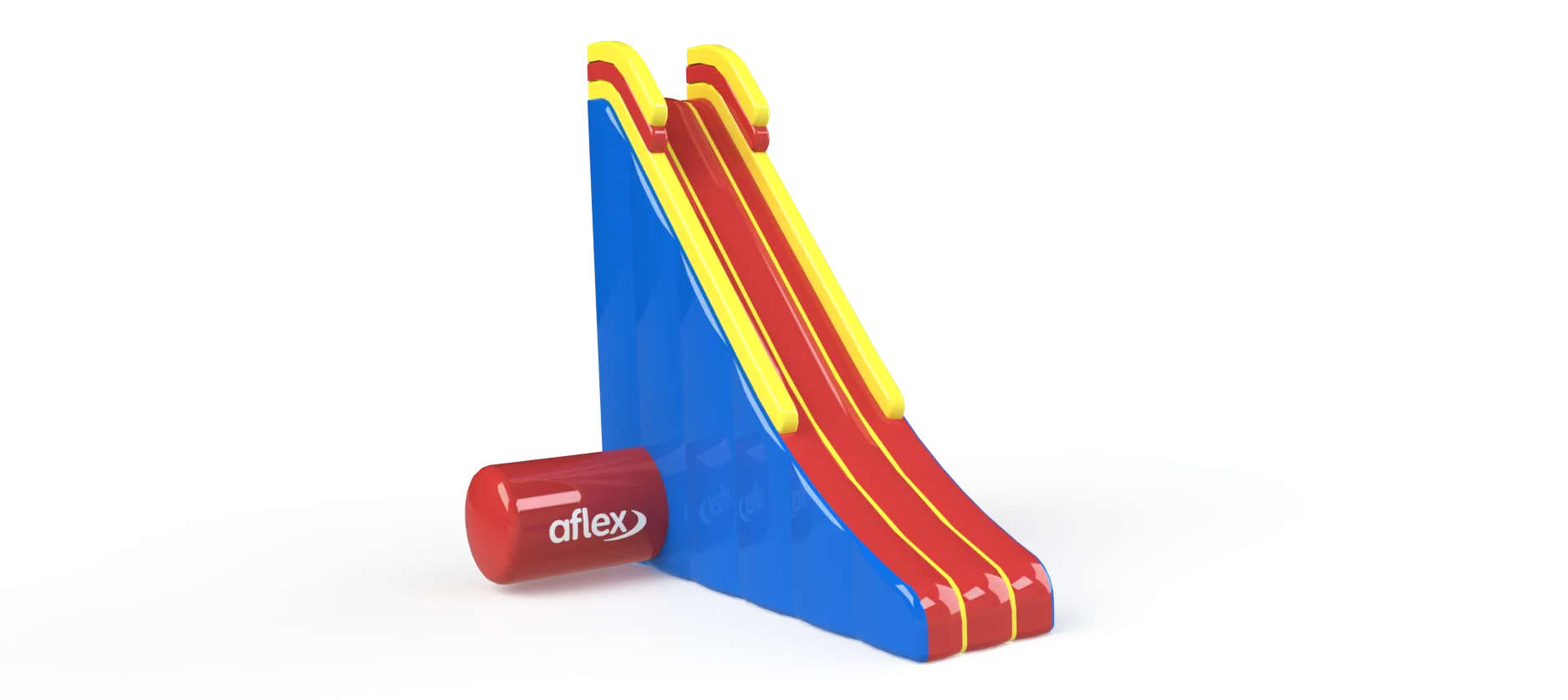

Our inflatable Zoom Xtreme Dive Board Slides provide an exhilarating - and rapid - descent from the top of your 5 m or 7.5 m dive board! This clever constant airflow inflatable design is easy to install and is fun for all ages.

[[Product Specifications]]

• Range: Constant Airflow Obstacle Courses
• Location Suitability: Commercial Pools/Centres - Dive Boards only
• Colour: Aflex Blue, Red & Yellow (unless otherwise specified)
• Product Code: CP-040-00 (5 m Slide) or CP-149-00 (7.5 m Slide)
• Constant Airflow Inflation: Blower required to keep inflated during use

[[/Product Specifications]]

[[Dimensions]]

• Length:6 m (19'8'') or 8 m (26'3'')
• Width:5 m (16'5'')
• Height:5 m (16'5'') or 7.5 m (24'8'')
• Approx. Weight:135 - 150 kg (297 - 330 lbs)

[[/Dimensions]]

[[Safety]]

• Min Depth at Exit:
• For 5 m Slide: 3.7 m (12'2'')
• For 7.5 m Slide: 4.1 m (13'5'')
• Splash Zone at Exit: 4 m (13'1'')
• Splash Zone refers to the minimum open water area around the product.
• Age Suitability: 8 yrs
• Max Capacity: 1 users at one time
• This is an estimate based on average youth size.
• Maximum Total Weight on Product: 100 kg (220 lbs)

[[/Safety]]

[[Installation]]

• Blower Type: Large
• Anchor Points: 4
• Setup Time: 30 minutes

[[/Installation]]
